Digger, Machinery or Plant Trailer

Made in the UK like the Ifor Williams

Built from the ground up in the UK, the Rhino TXDP embraces the harsh environments associated with construction work. The tough galvanised steel chassis and modular design embodies durability and strength that you’ve come to expect from Towmate® Built Rugged trailers.

Heavy Duty Running Gear features a 5 stud configuration with a heavy duty SFL bearing for durability and ease of maintenance.

Extended Draw Bar ensures sufficient clearance so the digger boom never makes contact with the towing vehicle. Complete with universal bucket rest.

Heavy Duty Mudguards bespoke welded steel construction offers aload bearing surface and enhanced durability. Covered in a high grip, anti-slip tape. Intergrated Side Steps made of heavy duty steel. Feature bespoke high grip protrusions for safe access. This high grip durable punched steel surface reduces slip hazards and allows safe access to machinery and equipment and ensures three points of contact cam be maintained at all times.

Full LED dual voltage lighting that is morereliable than bulb lighting and better return on investment overall.

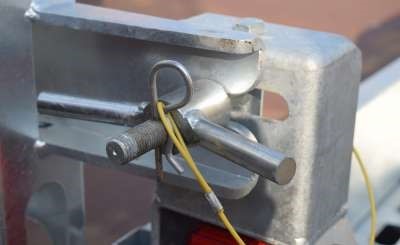

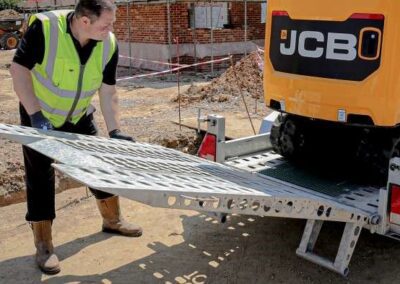

The threaded ramp fastener offers better holding than ACME thread with additional locking pin and rubber buffer for a safe and quiet ride.

Capacity

  • Gross kg 2700
  • Payload kg (standard spec) 2161
  • Unladen Weight kg (standard spec) 539

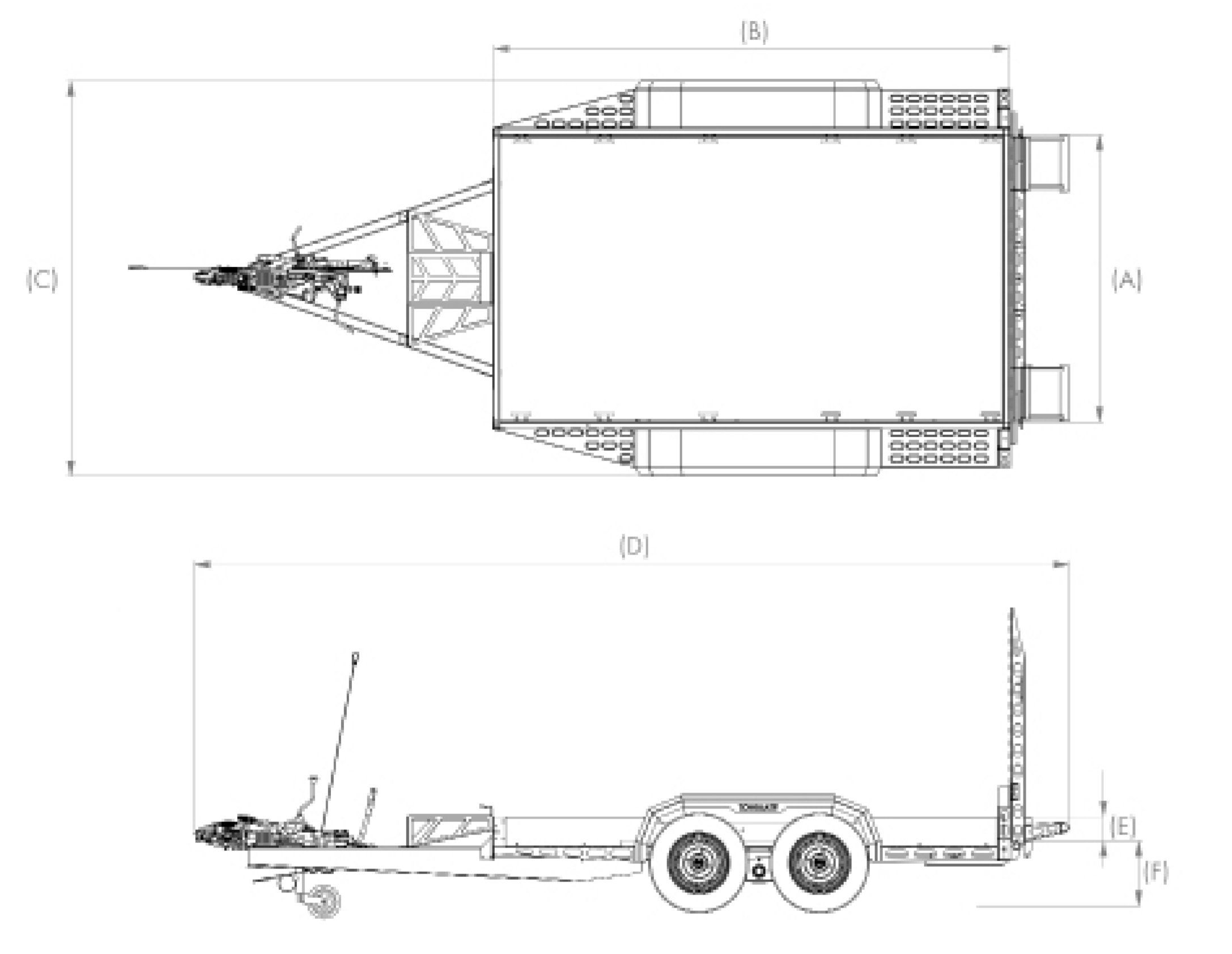

Dimensions

  • (A) Internal Width (mm) 1300
  • (B) Internal Length (mm) 2800
  • (C) Overall Width (mm) 1940
  • (D) Overall Length (mm) 4928
  • (E) Side Height (mm)  147
  • (F) Loading Height (mm)  380

Running gear

  • Twin Axles
  • 165 R13 Wheel & Tyre Assembly
  • Spare Wheel
  • 2.5T Rated Lashing Points (2 pairs)
  • 50mm Ball Coupling with High Security Lock
  • Wheel Sentry®

Bed

  • Plywood Flooring
  • Steel Grip Deck with Plywood Infill

Rear Loading

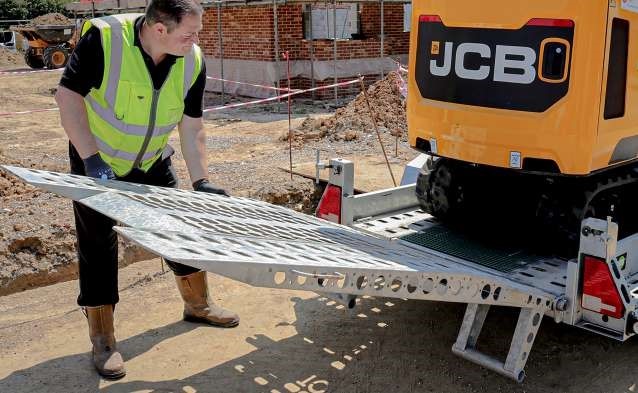

  • 1400 Full Width Ramp
  • Gas-assisted ramps (for full width ramps)
  • Breaker Store & Bucket Rest

PRICE: $14,500

NOW $13,000  INCL GST AND ORC
